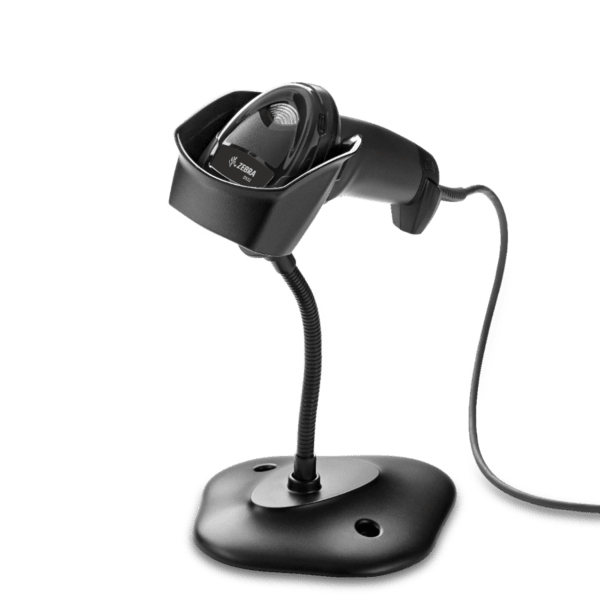

Zebra DS2208 Barcode Scanner 2D
Untuk datasheet produk, order, dan info lebih lanjut silahkan klik button hubungi kami.
Deskripsi Produk:
Original & Resmi
Garansi Selama 1 Tahun
Include Stand Scanner
Physical Characteristics
Dimensions: 6.5 in. H x 2.6 in. W x 3.9 in. D
Presentation Cradle: 2.8 in. H x 3.7 in. W x 4.8 in. D 7.2 cm H x 9.4 cm W x 12.2 cm D
Weight: Corded DS2208: 5.7 oz. / 161.6 g, Presentation Cradle: 5.2 oz. / 151 g
Input Voltage Range: DS2208 and Cradle: 4.5 to 5.5 VDC
Host Powered: 4.5 to 5.5 VDC External Power Supply
Presentation Cradle and Micro USB Cable:
500 mA (typical) Standard USB; 1100 mA(typical) BC 1.2 USB
Color: Twilight Black
Supported Host Interfaces: USB
User Indicators: Direct Decode Indicator; good decode LEDs; Rear view LEDs; beeper(adjustable tone and volume)
Performance Characteristics
Motion Tolerance(Handheld) Up to 5 in./13 cm per second for 13 mil UPC Swipe Speed
Light Source: Aiming Pattern: Linear 624nm Amber LED
Illumination: (2) 645nm Super-Red LEDs
Imager Field of View: 32.8° H x 24.8° V Nominal
Image Sensor: 640 x 480 pixels
Minimum Print Contrast: 25% minimum reflective difference
Skew/Pitch/Roll Tolerance: +/- 65°; +/- 65°; 0-360°
Minimum Element Resolution
Code 39 - 4.0 mil; Code 128 - 4.0 mil; Data Matrix - 6.0 mil; QR Code - 6.7 mil
User Environment
Operating Temperature: DS2208 Imagers:
32.0° to 122.0° F/0.0° to 50.0° C
Presentation Cradle:
32.0° to 104.0° F/0.0° to 40.0° C
Storage Temperature: -40.0° to 158.0° F/-40.0° to 70.0° C
Humidity: 5% to 95% RH, non-condensing
Drop Specification: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Tumble Specification: Designed to withstand 250 tumbles in 1.5 ft./.5 m tumbler1
Environmental Sealing: IP52
Electrostatic Discharge (ESD): DS2208 and CR2278 Cradle: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
Ambient Light Immunity: 0 to 10,000 Foot Candles/0 to 107,600 Lux
Decode capabilities
1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
2D: PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes
